Select the beam type, load type, and enter the necessary values. The tool will instantly calculate the beam deflection for you.
Related
Use our beam deflection calculator to determine the maximum bending or deflection of a beam, whether it is simply-supported or cantilevered. The calculator considers the load magnitude, its location, and beam properties such as elasticity and moment of inertia.
The maximum deflection of a beam depends on its support type and the nature of the applied load. Below are commonly used formulas:

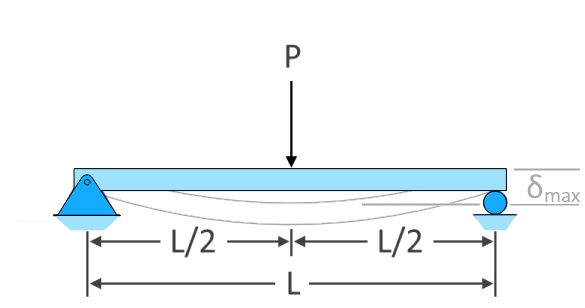

\( \delta_{max} = \dfrac{PL^3}{48EI} \)
\( \delta_{max} = \dfrac{Pb(3L^2 - 4b^2)}{48EI} \)
\( \delta_{max} = \dfrac{5wL^4}{384EI} \)
\( \delta_{max} = \dfrac{0.00652 w L^4}{EI} \)
\( \delta_{max} = \dfrac{w L^4}{120EI} \)
\( \delta_{max} = \dfrac{M L^2}{9 \sqrt{3} EI} \)
\( \delta_{max} = \dfrac{P L^3}{3 EI} \)
\( \delta_{max} = \dfrac{P a^2 (3L - a)}{6 EI} \)
\( \delta_{max} = \dfrac{w L^4}{30 EI} \)
Case 1: \( \delta_{max} = \dfrac{w L^4}{30 EI} \)
Case 2: \( \delta_{max} = \dfrac{11 w L^4}{120 EI} \)
\( \delta_{max} = \dfrac{M L^2}{2 EI} \)
From Wikipedia: Deflection (Engineering) – Beam deflection under various loading and support conditions. From Lumen Learning: Stress, Strain, and Elastic Modulus – Tensile and compressive stress concepts.
